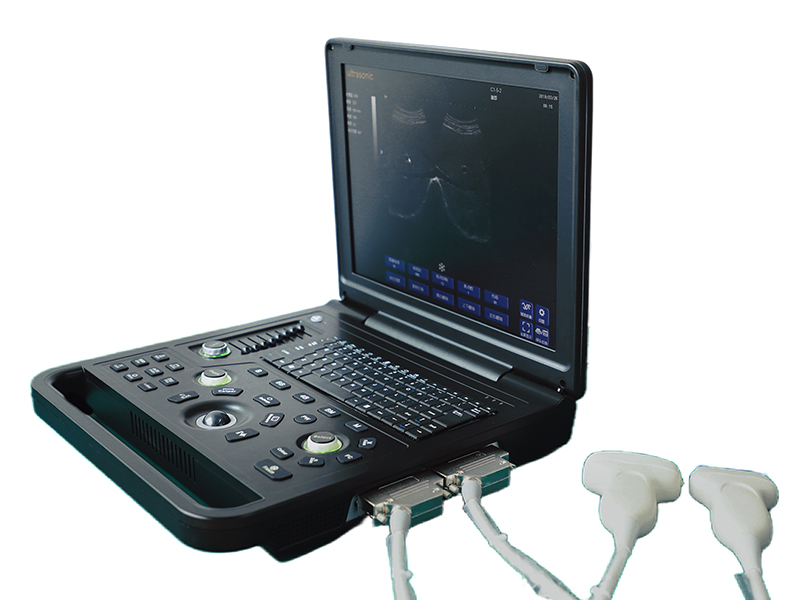

TH-SS8

Technical specifications >>>>>>

• Operating system: ARM architecture system

• Screen: 15 inch, 1024*768 resolution ，HD LED  screen

• Preset and optimization function: with image post-processing function. Based on a large amount of clinical

experience, the machine has different preset adjustment conditions for different parts or organs examined by

different departments and has one-click optimization function.

• Obstetric measurement: there are different ethnic measurement formulas

• Operating languages: Chinese, English, German, French, Spanish, Portuguese, Russian, Persian, Arabic, etc

• Imaging Mode: B, B+B, B+M, M, 4B, PW

• Probe array element: automatically identify and use a variety of array element probe（80 elements,96 elements,128 elements) Note: Only the probes produced by our company.

• Cine playback: ≥500 frame

• Image storage: ≥360 images. External USB storage, single image storage time ≤9 seconds (storage speed is related to the USB device used)

• Scanning angle adjustment: adjustable

• Image magnification: separate swirl depth adjustment (25 levels adjustable);

• Puncture: with puncture guide line, angle and position are adjustable

• Focus: adjustable focus position, 5 levels of focus position adjustment

• Image adjustment: up and down, left and right, brightness, focus position, dynamic range, scanning angle, frame correlation, M speed

• Image processing: image smoothing/sharpening, tissue harmonics, gamma correction, false color• Notes and characters: date, clock, name, age, gender, doctor, hospital name, image annotation

• Position mark: ≥97 types

• Measurement

a) Routine: distance, perimeter, area, volume

b) PW function

c) Heart: 18 measurements including left atrium, right atrium, left ventricle, right ventricle, aorta, descending aorta, and aortic isthmus etc

d) Obstetric: 43 measurements including gestational sac, double parietal diameter, head circumference, abdominal circumference, femur length, fibula length, head buttock diameter, yolk sac, abdomen, large and small brain, last menstruation, amniotic fluid, gestational age, expected date of delivery, fetal weight etc,With different ethnic measurement formulas

e) Gynecological: uterine body, cervix, endometrial thickness, ovary, follicle

f ) Urology: kidney, adrenal gland, prostate, testicular mass, epididymis etc

g) Pediatric: common hepatic duct, common bile duct, pancreas, spleen, kidney, adrenal gland, etc

h) Small organ: thyroid, seminal vesicle, testis, scrotum, breast mass, skin mass, etc.

• Report function: automatically generate reports on abdomen, urology, obstetrics, heart etc. This device is equipped with an ultrasound workstation report page, which can extract and store 1-4 images. Use hospital standard report page settings, you can enter hospital, patient, physician, diagnosis result information etc. Automatically import

inspection measurement data, and select diagnosis pictures

• External interface: VGA interface, dual USB2.0 interface, VIDEO interface

• Power saving mode: The panel button light can be turned on and off by one key, and the instrument will

automatically turn off the power if it is not used for 6 minutes. Press any key to resume operation
