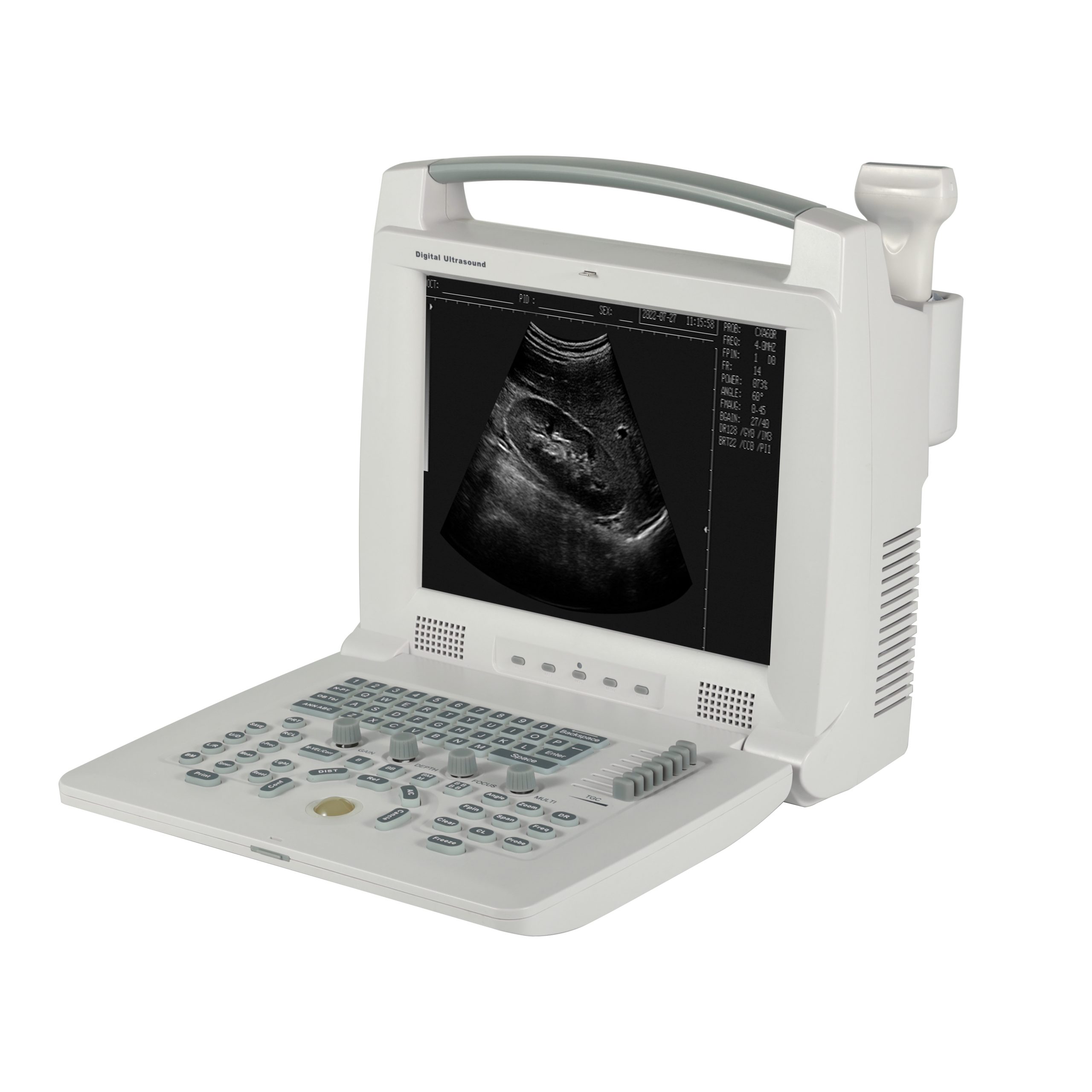

TH-3018B

• Display depth (mm): 240 (max),16 levels adjustable
• Monitor size:12 inch
• Display mode: B、2B、B+M、M、4B
• Image gray scale:256 level
• Cine loop:809 frame (Max)
• Image storage: 32 frames
• Scan angle: Adjustable
• Scane depth: 40mm-240mm
• Acoustic power: 2 steps
• Dynamic range:100 dB-130dB
• Image flip: Up/down, left/right, black/white
• Focus position: Adjustable
• Focal space: 5 level
• Measurement: Distance, circumference, area, volume, heart rate, GA, FW, EDD.
• Notation: Date, time, name. sex, age, docto hospital name. Full screen words edit
• Output report: 2 type
• Posture mark: l’.40
• Video output: PAL-D, VGA
• Machine dimension (mm): 320*165*290
• Power Supply: AV220V 士 22V, 50MHz 士 1MHz
